Revolutionary Pipes For The Home And Industries

Sauber Wasser Sdn. Bhd. specializes in manufacturing and marketing Polyethylene Aluminium Composite pipes, a multi purpose, durable and cost effective pipe which combines the attributes of metal and plastic to meet with current safety measures and environmental conservation assessments.

Based on German technology, we have further improved the manufacturing process through our R & D.

P.A. Pipe (PE-AL-PE) is a new penetration of pipe engineering and a great reformation of pipe manufacture. It has many sharp chemical and physical properties, with which it enjoys advantages of both metal pipe and plastic pipe, thus has been widely used in cold and hot water, gas, compressed air, solar energy and air-conditioned, heating, medical, foodstuff and chemical fluid supply pipe systems, of both industrial and household. It’s the best substitute for all-plastic pipe, copper pipe, galvanized pipe and stainless steel pipes.

Our P.A. Pipe’s proven track record of a total 1,000,000 meters of communication pipes laid in Malaysia, and there are zero complaint and zero water leakage on our pipes. Our pipe is doing tremendously well in saving Non Revenue Water in Malaysia.

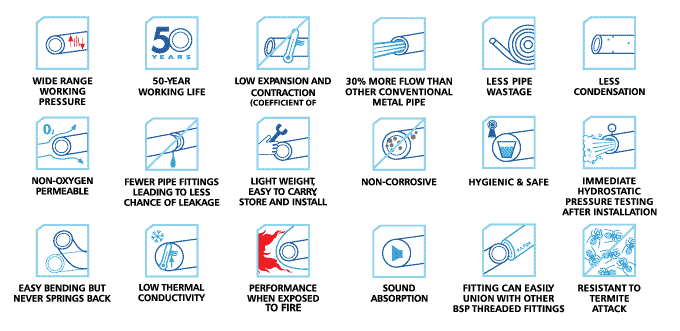

Here are some of our P.A. Pipes key features:-

1) Wide range working pressure

The continually-welded middle layer of aluminum pipe makes the pipe able to withstand higher pressure. We had a burst test of 80 bar, where the burst point is in the pipe body area. It is no where near the fittings area.

2) 50-year working life

The materials have a very high resistance to ageing, if utilized at the optimum pressures and temperatures.

3) 30% more flow than other conventional metal pipe

The smooth surface of the inner PE layer is resistant-free to the transport water as it ensures no scale, calcium and algae or other mineral build up which will reduce the flow or performance.

4) Easy Bending but never springs back

Once the pipe has been bent, it remains in the desired position like a metal pipe. It is therefore possible to prepare lengths of pipe with the preassembled fittings in the warehouse, when a series of systems are required, and transfer them to the construction site later, ready to assemble the system. The malleable features of the pipe enable bends with a very narrow radius to be formed.

5) Fewer pipe fittings leading to less chance of leakage

Fewer joints means less cost, less work and less problems, which are always associated with leakage problem. This is a very good advantage to the communication pipeline because in directly it saves a lot of fittings cost on your project.

6) Light weight, easy to carry, store and install

Light weight long coils make water services line installation simple, minimize the storage space and less wastage as compared to conventional fixed length pipe. Pipe cuts easily with simple hand held cutters.

7) Hygenic & safe

Sauber Wasser P.A. Pipe’s inner and outer layer of PE meets the requirement of USA Food and Drug Administration (FDA) regulation 21 CFR 177.1520.

The benefits and saving of P.A. pipe are tremendous, considering the fact that huge NRW losses can be reduced by replacing the old pipeline and implement into new communication pipeline system.

Applications

COLD & HOT WATER DISTRIBUTION
Its smooth interior, rust-free and scale-free quality ensures 30% better flow than any metal pipe.
Compliance with installing directive is a must for both cold and hot water systems.

GAS & AIR DISTRIBUTION

For optimum results ensure AL middle layer is continually welded.

SOLAR ENERGY, AIR-CONDITIONING AND REFRIGERATION SYSTEM
These pipes can help save the expense of thermal-preservation, thus contributes to efficiency.

BELOW FLOOR HEATING

The pipes’ quality and unique properties make them ideal wherever heating is needed in home or industrial applications. timur P.A. Pipe has no adverse effects when used to distribute chemicals. It is also hygienic and safe, with minimum risk of leakages. As it is corrosion-resistant, contamination-resistant and static-free, it can be used for medical and oxygen; chemical; foodstuff and industrial fluid supply. At normal temperatures PE has good chemical resistance.

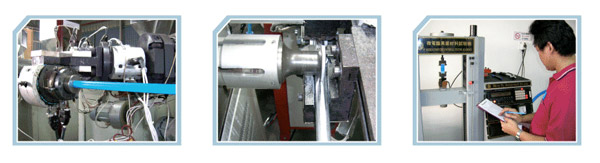

Our quality control personnel ensures the superior quality of Sauber Wasser P.A. Pipe during production and at our QC laboratory. At the laboratory, a barrage of quality tests are carried out including pipe ring strength testing, aluminium elongation performance testing and burst pressure testing.

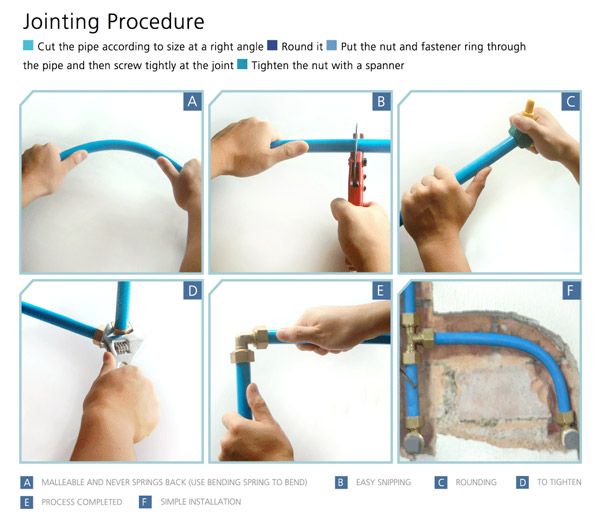

Quick And Easy Installation

INSTALLATION – DO’S AND DON’Ts

  • Install with minimum exposure to sunlight.
  • Solidifying of liquid in the pipe might occur in cold temperatures. Avoid freezing temperatures.
  • When bend radius is less than five times the outer diameter, elbow joint should be used for connection.

ASSEMBLING & FIXING

  • Priory ensure work site is reasonably clean. Cap pipe-end as necessary to keep out mud, sand and earth.
  • All laying or installing to comply with work drawings.
  • Straighten pipe where necessary on level ground. For small diameters, straightening best done manually. Preferably use a socket at intervals of 600 to 1000mm diligently.
  • Bending the pipe : insert spring into pipe; bend slowly. Later, draw out the spring. Where done manually, the bend radius should not be less than five times the size of outer diameter.

Diagrams

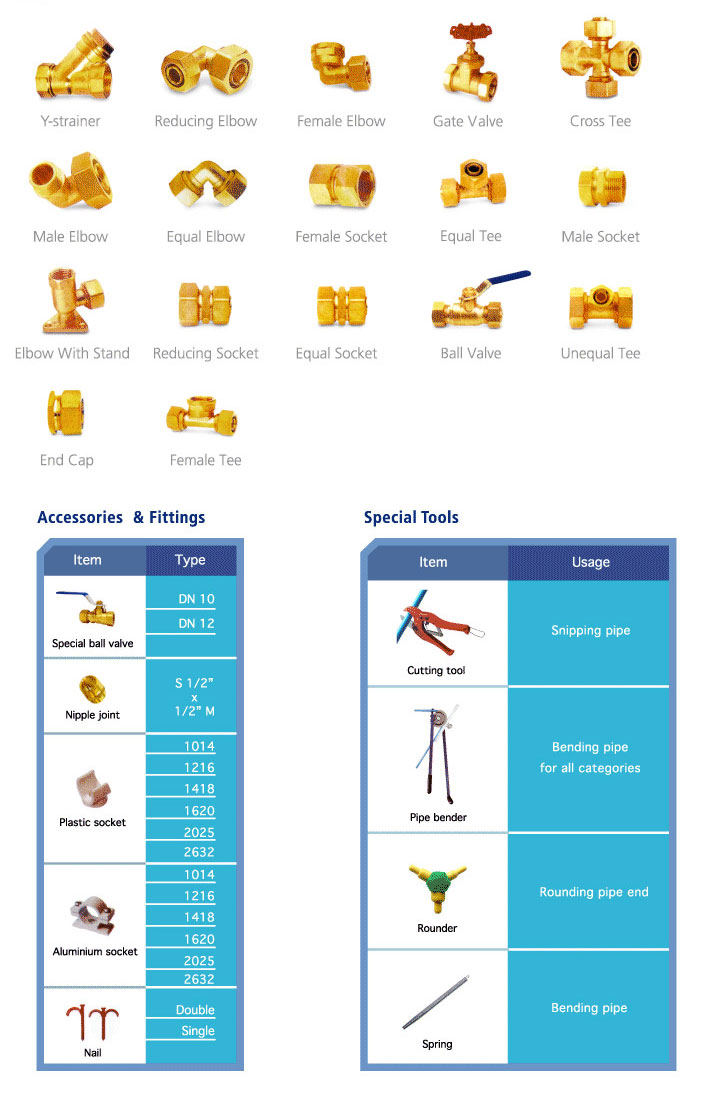

Specifications

Features

WIDE RANGE WORKING TEMPERATURE

The continually-welded middle layer of AL-Pipe makes the pipe able to withstand temperature and pressure.

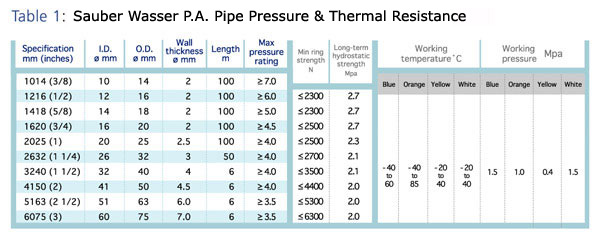

Please refer to Table 1

30% MORE FLOW THAN OTHER CONVENTIONAL METAL PIPE

The smooth surface of the inner PE layer is less resistant in the transport of water. This ensures no scale, calcium or other minerals builds up to redure flow or performamce.

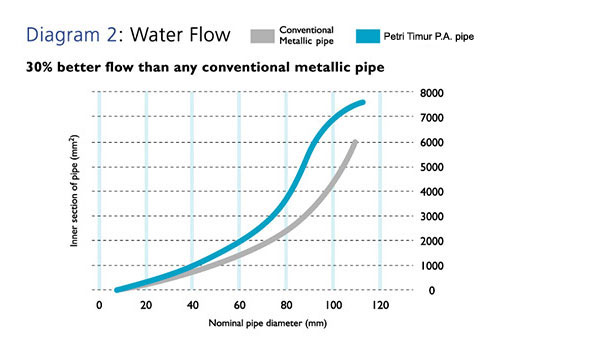

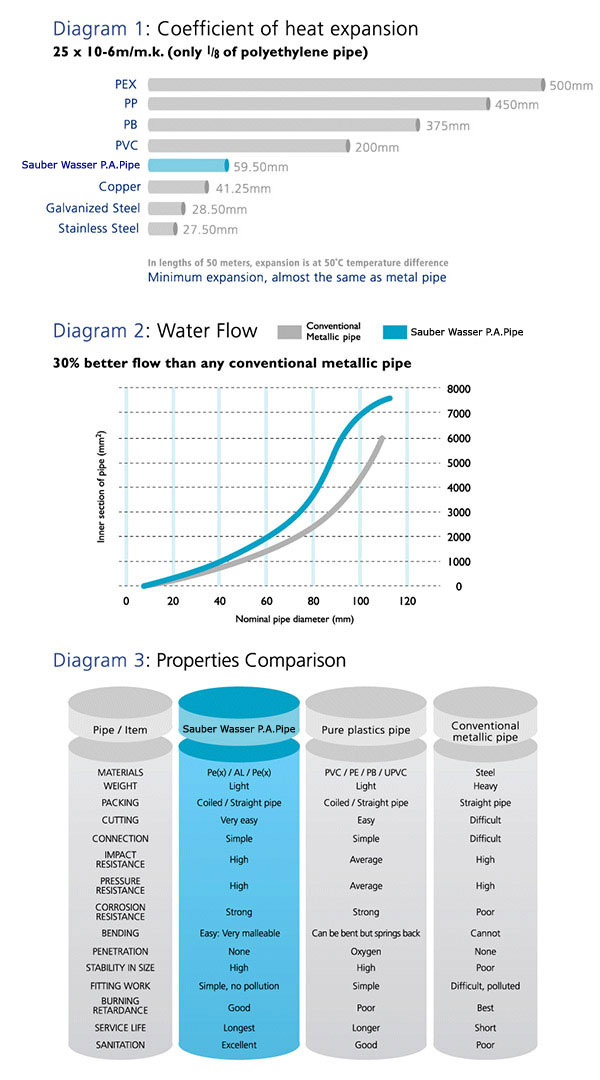

Please refer to Diagram 2

NON-CORROSIVE

Under normal temperature, PE can be resistant to various concentrations of hydrochloric acids, bases and salts of various kinds. Sauber Wasser P.A. Pipe is hygienic, toxic-free, rust-free and anti-mirco-organisms thus avoiding contamination in the water over time.

NON-OXYGEN PERMEABLE

Sauber Wasser P.A. Pipe is a composite pipe and its core layer of aluminium makes the pipe oxygen tight with negligible oxygen permeability.

EASY BENDING BUT NEVER SPRINGS BACK

If the pipe is required to be exactly in horizontal an vertical planes, the minimum distance between two bends should be 5 times the outside diameter of the pipe. Conventional plastic and metal pipes connot be bent or have limited bending ability.

FEWER PIPE FITTINGS LEADING TO LESS CHANCE OF LEAKAGE

Fewer joints means less cost, less work and less problems, which are always associated with water leakage.

LIGHT WEIGHT, EASY TO CARRY, STORE AND INSTALL

Light weight long coils make water services line installation simple. Pipe cuts easily with simple hand held pie cutters.

LOW EXPANSION AND CONTRACTION (COEFFICIENT OF HEAT EXPANSION)

Its aluminium core controls expansion and contraction, which is similar to copper pipes.

LESS CONDENSATION

Sauber Wasser P.A. is less likely to ‘sweat or create moisture on the outer surface of plumbing pipes than typical metallic plumbing systems like copper. This is because the plastic layer acts as an insulator.

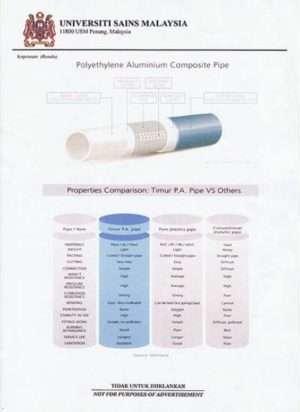

Standards & Approval

Specification For Pipe Laying

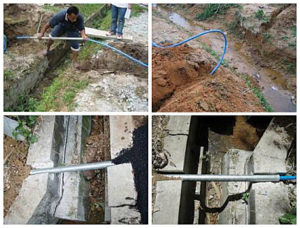

PICTURES OF PA PIPE FOR DRAIN CROSSING BY USING SLEEVE.

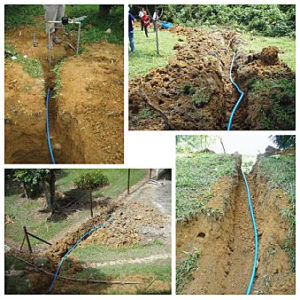

PICTURE OF PIPE LAID ON SOIL TRENCHES WITHOUT SLEEVE

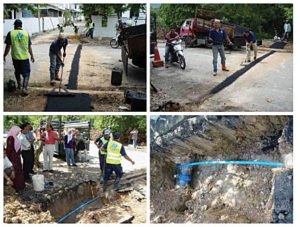

PICTURES OF PA PIPE LAID ON DIFFERENT TYPE OF TRENCHES WITHOUT SLEEVE FOR ROAD CROSSING

PICTURES OF PA PIPE LAID ON DIFFERENT TYPE OF TRENCHES WITHOUT SLEEVE FOR ROAD CROSSING

PICTURES WITH PA PIPE CONECTION TO MAIN SUPPLY PIPE.
